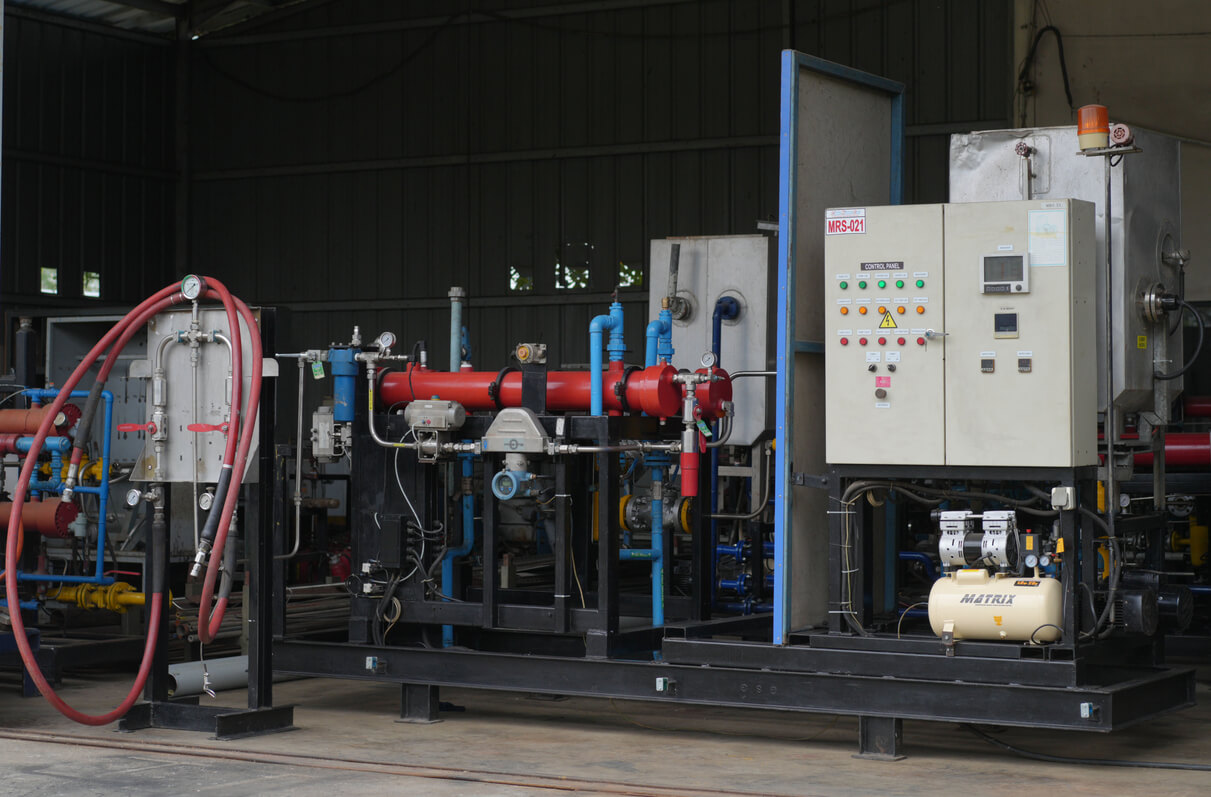

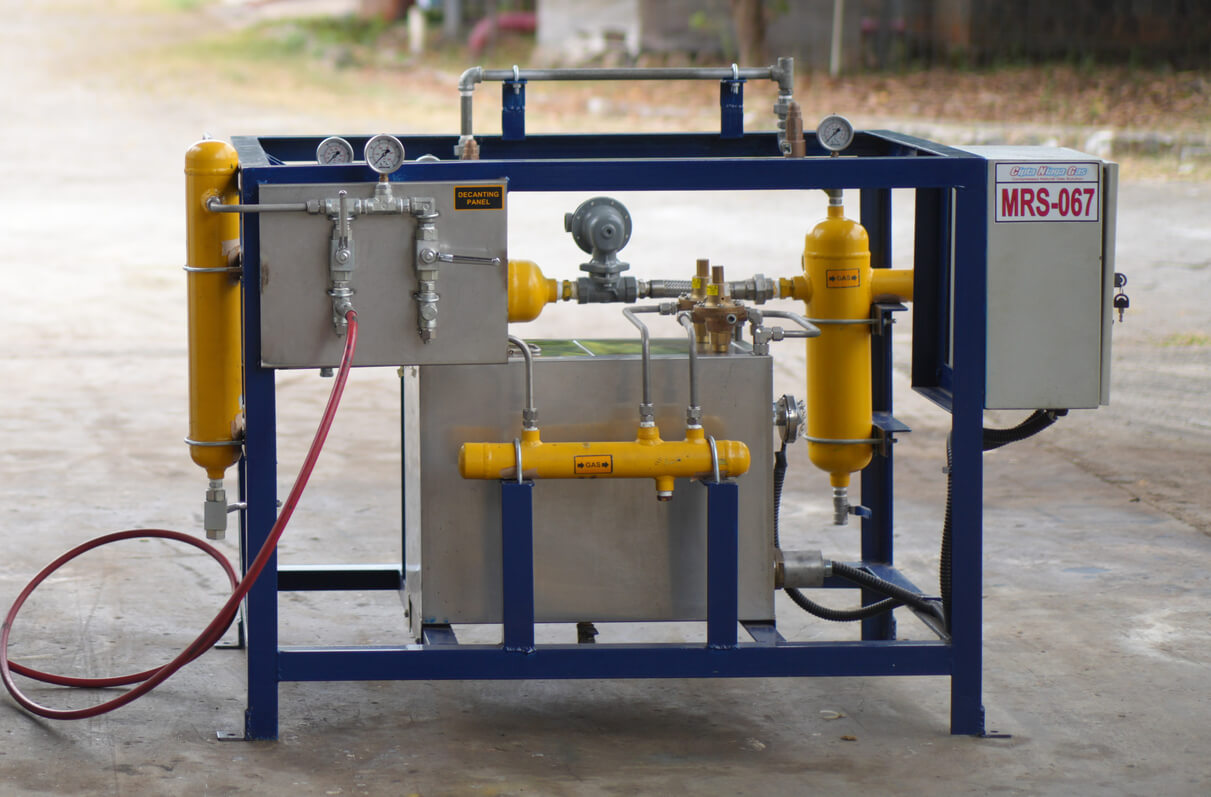

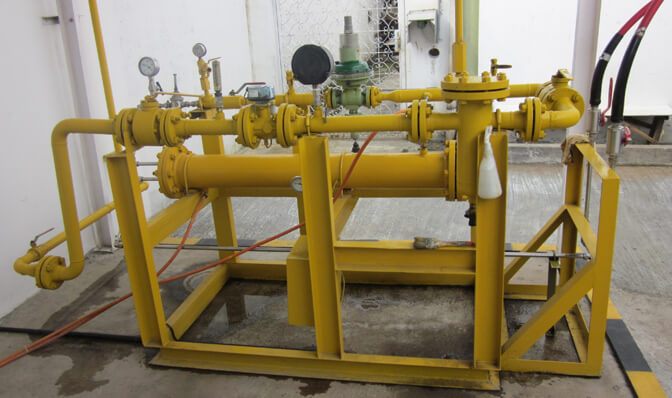

A Meter Regulating System (MRS) is an essential component in gas distribution networks, responsible for controlling the pressure and flow of gas from high-pressure transmission pipelines to end users, such as industrial facilities, commercial businesses, or residential areas. The system is designed to ensure safe and efficient gas delivery by regulating gas pressure to suitable levels and accurately measuring gas consumption. Key components of an MRS include pressure regulators, flow meters, safety valves, and filtration units. These systems help maintain stable gas flow and ensure compliance with safety and regulatory standards. MRS units are critical for preventing overpressure incidents and ensuring consistent gas supply to customers.
Storage
CNG Storage refers to a series of high-pressure cylinders (modules) that function as storage containers for compressed natural gas, which is then distributed to customers according to their needs. Here are some types and capacities of Storage CNG:

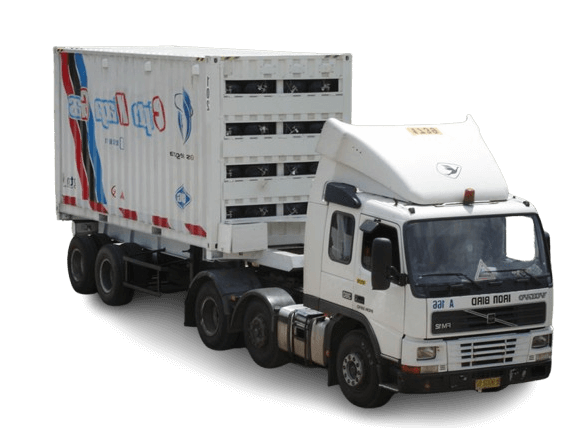

20ft Mobile Storage
This is a mobile storage module allocated for customers with large consumption volumes and uses swapping process to exchange an empty mobile storage with a full one in its stock replenishment process.
Dimensions:
- Length: 7.2 m
- Width: 2.5 m
- Height: 4.35 m

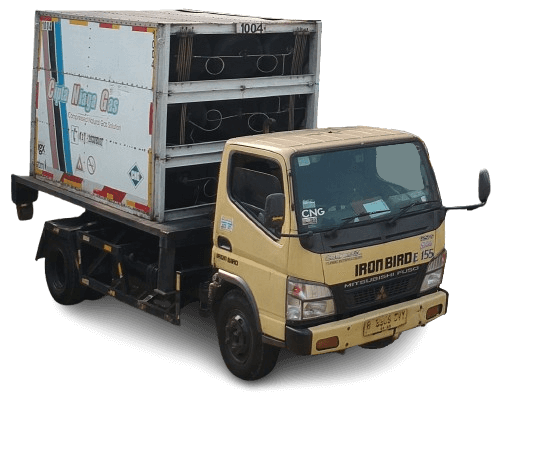

10ft Mobile Storage
This is a mobile storage module allocated for customers with medium consumption volumes and uses swapping process to exchange an empty mobile storage with a full one in its stock replenishment process.
Dimensions:
- Length: 5.80 m
- Width: 2 m
- Height: 3 m

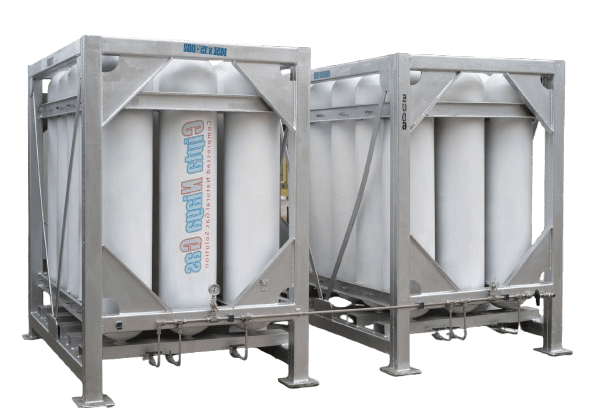

Fixed Storage / Cradle
This is a storage module allocated for customers with small consumption volumes, placed permanently (Fix) at the customers site and uses an injection / refill process from Mobile Storage 10 FT or 20 FT to the Fix Storage to replenish the CNG stock.
Dimensions:
- Length:
- Width:
- Height:

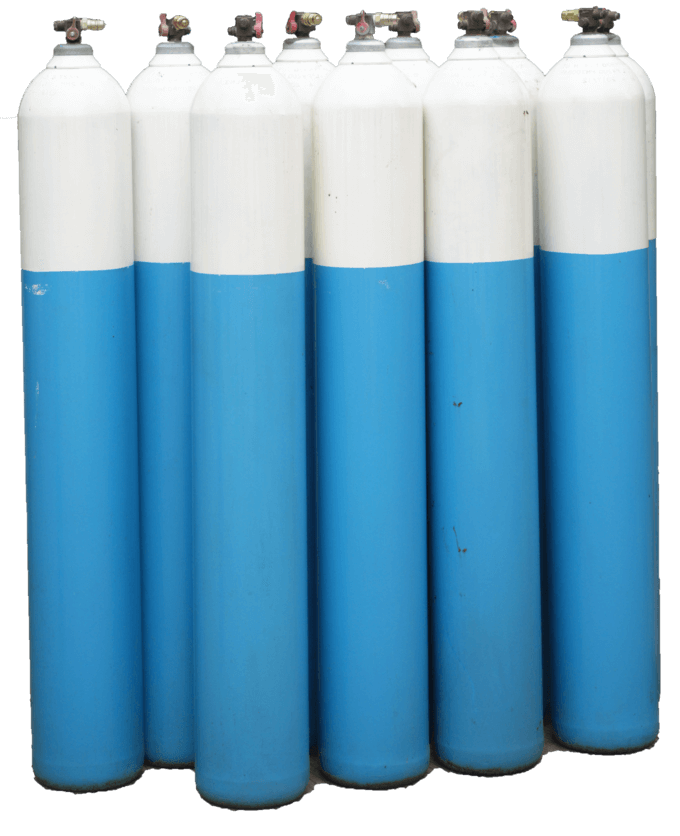

Single Cylinder (Retail)
This is a high-pressure cylinder containing CNG with a volume equivalent to 12 kg LPG gas, allocated for the retail and SME segments, and uses cylinder exchange in its stock replenishment process.
Dimensions:
- Length:
- Width:
- Height:
